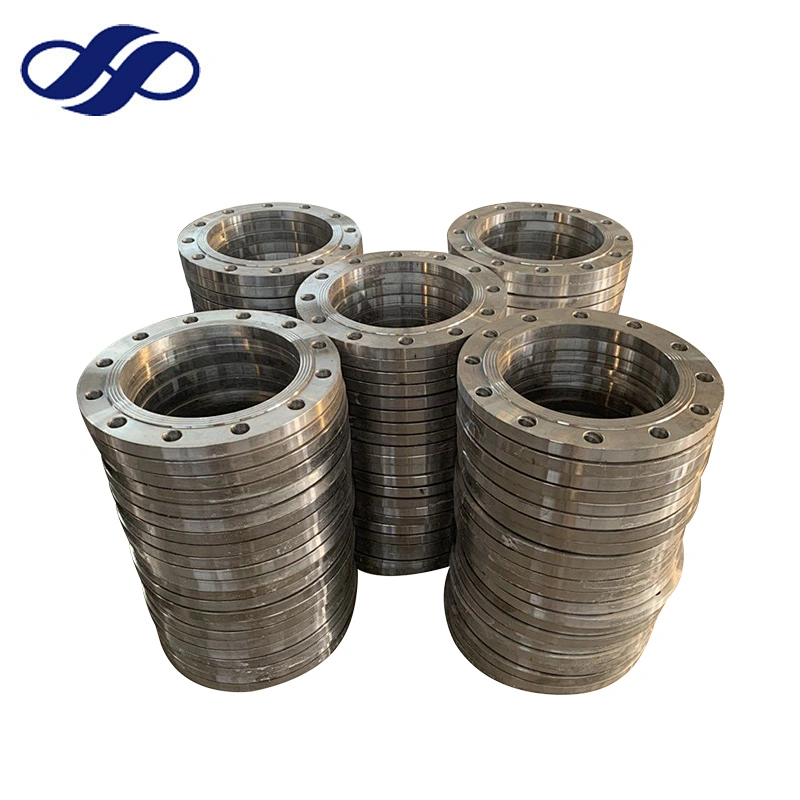

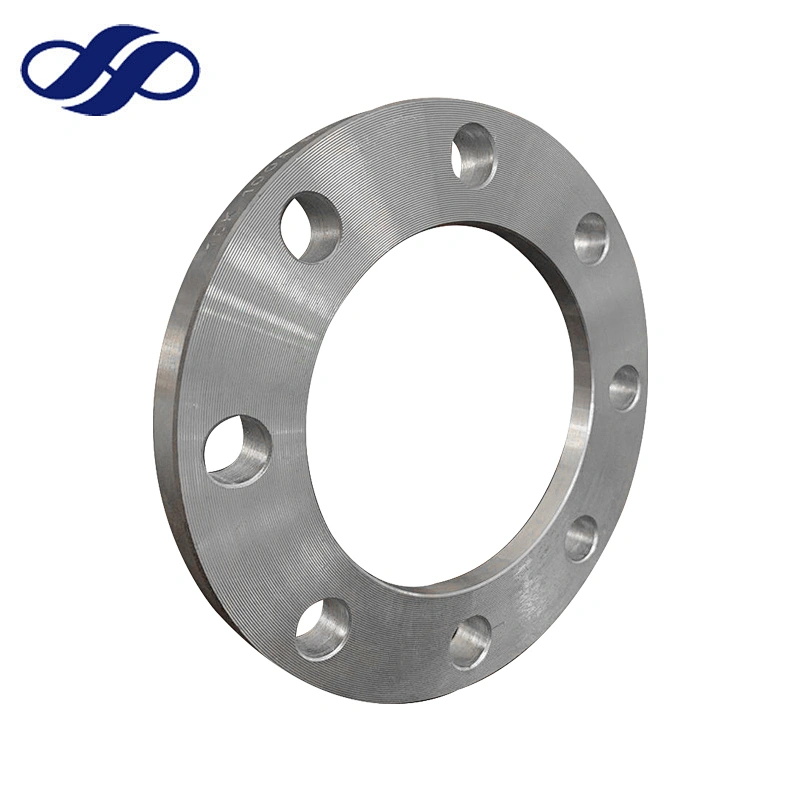

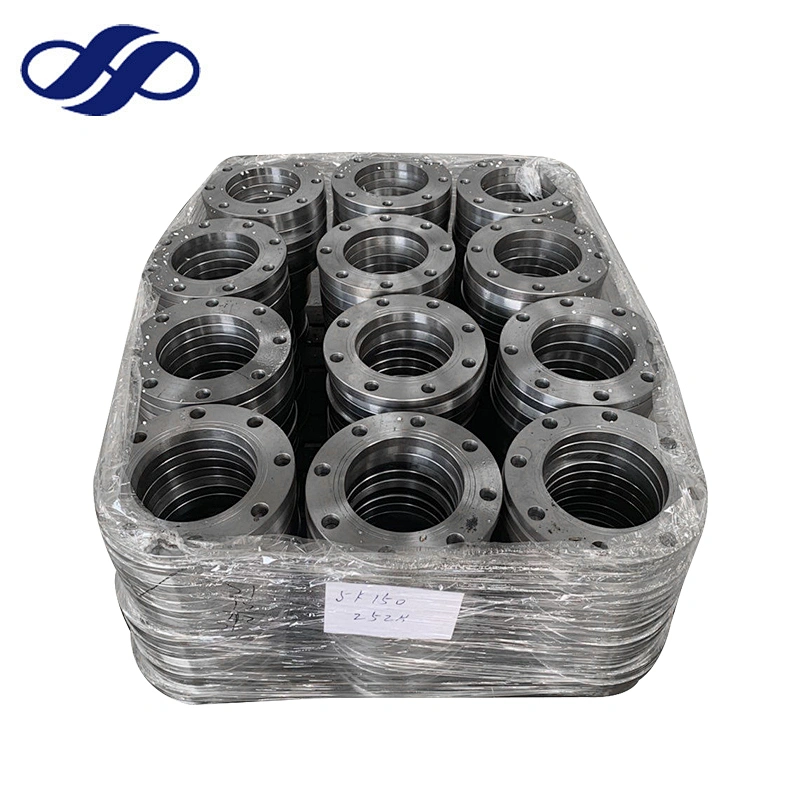

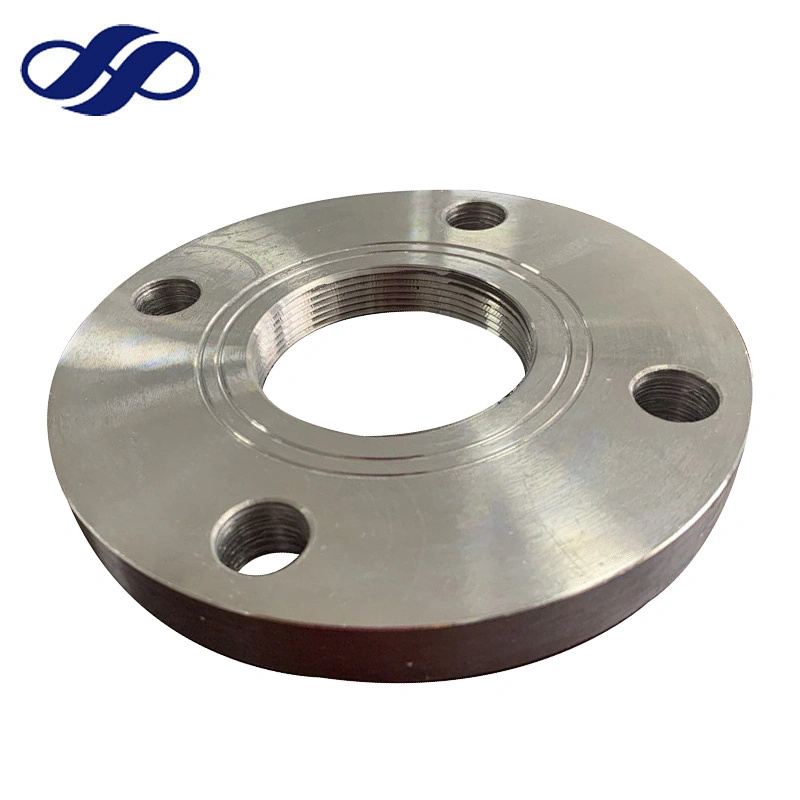

JISB2220 FLANGE

Model NO.: 6"

Quantity:

Product Description

AMERICAN STANDARD FLANGE-ANSI B16.5
FLANGE TYPE: WELDING NECK; SLIP ON; BLIND; LAP JOINT; THREADED; SOCKET WELDING
SIZE RANGE: DN10-DN2000
PRESSURE: 150LB; 300LB; 600LB; 900LB; 1500LB; 2500LB
SEALING TYPE: FLAT FACE(FF); RAISED FACE(RF); RING JOINT(RTJ)
MATERIAL: CARBON STEEL ASTM A105/A105N; A694 F42-F70; A-350 LF1/LF2;
STAINLESS STEEL ASTM A182 F304/304L; F316/316L; F321; F51
ALLOY STEEL ASTM A182 F11/F12/F22

JANPANESE STANDARD FLANGE-JIS B2220
FLANGE TYPE: SOP; SOH; BLIND; WELDING NECK; SOCKET WELDING;
SIZE RANGE: 10A-1500A
PRESSURE: 5K; 10K; 16K; 20K; 30K
MATERIAL: CARBON STEEL SS400; SF390A; SF440A
  STAINLESS STEEL SUS F304/F304L; F316/F316L;SS321
      ALLOY STEEL SFVA F1; SFVA F1A

EUROPEAN STANDARD FLANGE-EN1092-1:2007
FLANGE TYPE: 01 PLATE; 02&04 LOOSE PLATE; 05 BLIND; 11&35 WELDING NECK; 12 HUBBED SLIP ON; 13 HUBBED THREADED; 32 PLATE COLLAR; 34 WELDING NECK COLLAR;
SIZE RANGE: DN10-DN2000
PRESSURE: PN0.6; PN1.0; PN1.6: PN2.5; PN4.0; PN6.3; PN10.0; PN16.0; PN25.0
MATERIAL: CARBON STEEL P235GH; P245GH; P250GH; P265GH; P280GH
STAINLESS STEEL ASTM A182 F304/304L; F316/F316L; F321; F51;SS321
  ALLOY STEEL

RUSSIAN STANDARD FLANGE-GOST
FLANGE TYPE: PLATE 12820-80; WELDING NECK 12821-80; RING 12822-80; BLIND 12836-67
SIZE RANGE: DN10-DN2000
PRESSURE: PN0.6; PN1.0; PN1.6; PN2.5; PN4.0; PN6.3; PN10.0; PN16.0; PN20.0
MATERIAL: CARBON STEEL CT20; CT.3
STAINLESS STEEL 12X18H10T; 10X17H13M2T;SS321
ALLOY STEEL 09T2C; 15X5M

DIN FLANGE
SIZE RANGE: DN15-DN2000
SLIP ON FLANGE: DIN2573,2576,2502,2503, 2543,2545;
WELD NECK FLANGE :DIN2631, 2632,2633,2634,2635
BLIND FLANGE :DIN 2527
THREADED FLANGE :DIN2565,2566,2567,2567
LOOSE FLANGE :DIN 2641,2642,2656,2673
PRESSURE: PN0.6; PN1.0; PN1.6: PN2.5; PN4.0; PN6.3; PN10.0; PN16.0; PN25.0
MATERIAL: CARBON STEEL P235GH; P245GH; P250GH; P265GH; P280GH;
  STAINLESS STEEL ASTM A182 F304/304L; F316/F316L; F321; F51;SS321
ALLOY STEEL

Send Message

Related Products

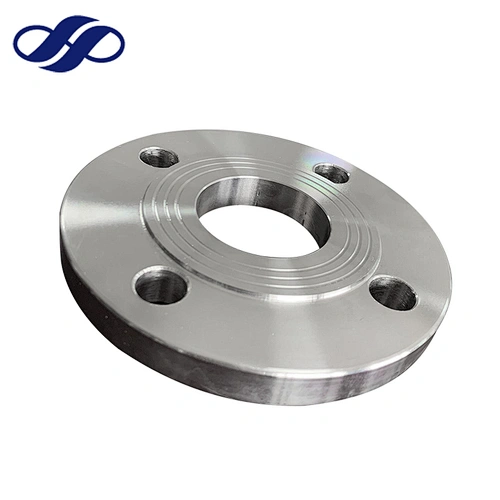

PLATE FLANGE
